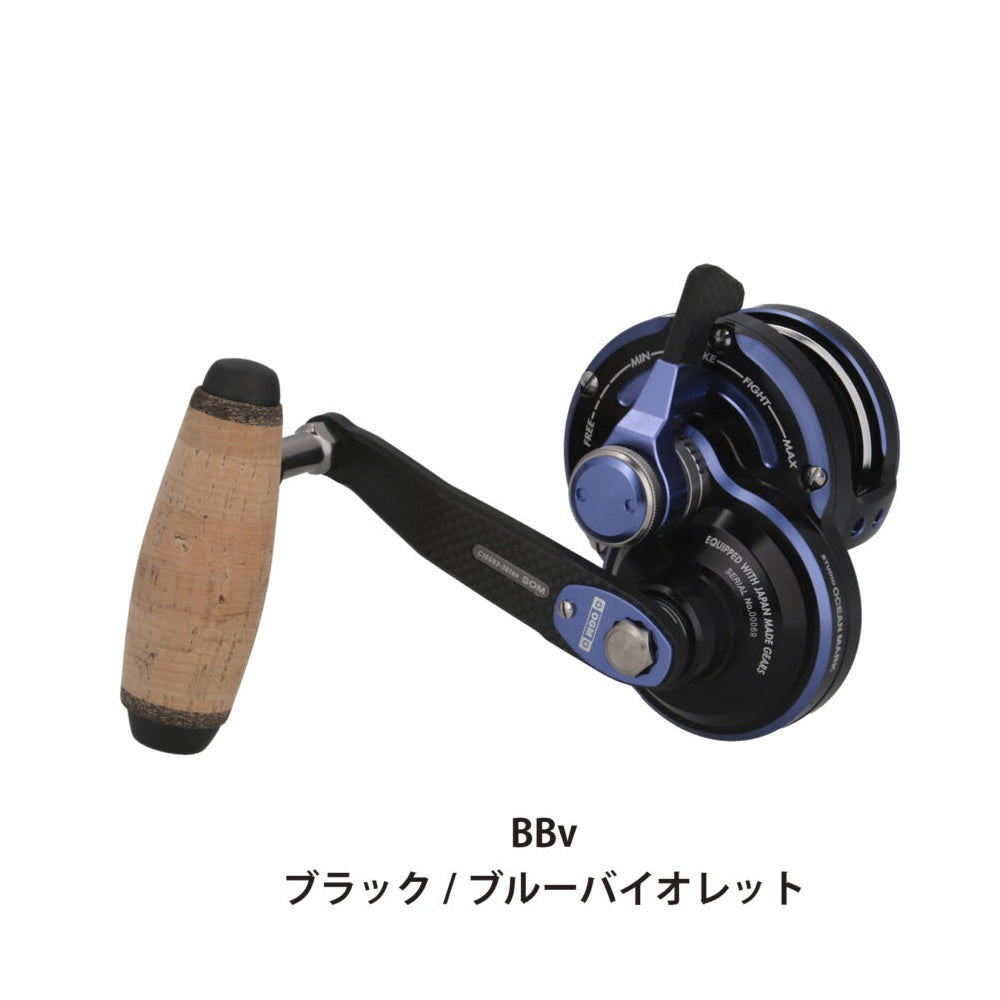

2026 S.O.M Blue Heaven BH-L80N OGM (Narrow Model)

#50 Line Capacity with #100-Class Power

Developed in response to anglers using PE1.5–2.5 who wanted #50-class line capacity with the winding power and drag performance of a #100-class reel.

This model combines a compact, easy-to-handle line capacity with powerful winding and high drag performance, offering a new high-power option within the BLUE HEAVEN L80 series.

Specifications

• Gear Ratio: 5.4:1
• Retrieve per Crank: 100cm
• Max Drag: 14kg
• Drag Washer: Compressed Cork
• Line Capacity: PE4 – 450m / PE3 – 600m / PE2 – 1,000m / PE1.5 – 1,200m
• Weight: 575g

Super-Narrow Spool Design

The BHL100, 80 and 80N all share a 64mm spool diameter. The 80N features an ultra-narrow 22.8mm spool width, even slimmer than the BHL50’s 24mm design.

By combining this super-narrow frame and spool with the powerful OGM BHL100 gearbox, the 80N delivers stable, wobble-free winding with uncompromising power.

64 Titanium Main Shaft Components

The premium main shaft is machined down to 12mm from a solid thick bar, while the spool shaft and handle rivets are also made from difficult-to-machine 64 titanium alloy.

These high-grade titanium components deliver major improvements in weight reduction, sensitivity and strength.

High-Strength One-Way Clutch Bearing

It delivers even greater anti-reverse load capacity than the BHL80’s dual 10mm inner-diameter setup.

The one-way clutch bearing is supported on both sides by larger-diameter radial ball bearings, together with a waterproof oil seal, providing greater strength, stability and protection.

Dual-Bearing Pinion Gear Support

The pinion gear is supported by both an angular contact ball bearing, highly resistant to lateral loads, and a radial ball bearing.

This dual-bearing design minimizes 3D pinion gear movement, efficiently transferring powerful handle rotation directly to the spool.

High-Modulus 36t Carbon Handle

Custom-laminated high-modulus 36t carbon maximizes both bending and torsional rigidity for exceptional strength and sensitivity.

The handle length has also been optimized to 105mm, rather than following the trend toward longer handles, providing an ideal balance of jerking stroke and winding efficiency.

Enhanced Waterproof Protection

A rubber cap surrounds the angular contact ball bearing, preventing seawater from entering the reel from the inside.

This enhanced sealing design provides a significant improvement in durability and corrosion resistance.

Mountain Module Stainless Steel Drive Gear

Standard BLUE HEAVEN models use a high-strength brass drive gear to balance durability and quiet operation. For greater sensitivity, OGM adopts a harder stainless steel drive gear.

The gear module has been maximized to create the Mountain Module Gear, delivering powerful and highly efficient winding performance.
