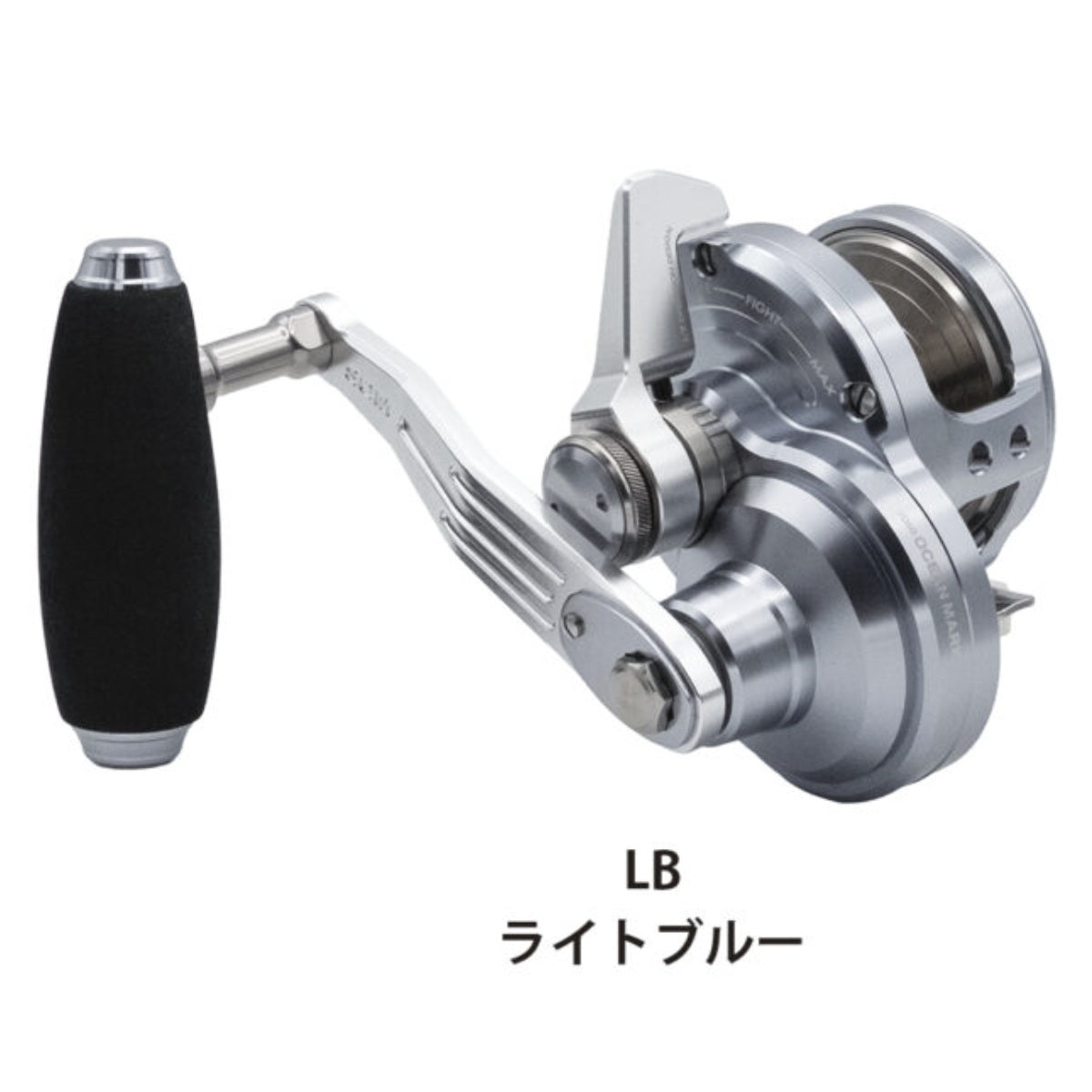

2026 S.O.M Blue Heaven L80N (Narrow Model)

The Most Powerful Narrow Model in BLUE HEAVEN

BLUE HEAVEN offers two distinct styles: the Square Design, with similar spool diameter and width, and the compact Narrow Design with a slimmer spool.

The L80 size gives slow-pitch jigging anglers the freedom to choose between these two styles. However, anglers using PE1.5–2.5 have long wanted something more: #50-class line capacity with #100-class winding and drag power.

Built for anglers determined to take on big fish with slow-pitch jigging, the BHL80N is BLUE HEAVEN’s ultimate high-power Narrow model.

Specifications

• Gear Ratio: Mid 5.4:1
• Maximum Retrieve per Crank: 100cm
• Max Drag: 14kg
• Drag Washer: Carbon
• Weight: 645g
• Line Capacity: PE4 – 450m / PE3 – 600m / PE2 – 1,000m / PE1.5 – 1,200m

Super-Narrow Spool Design

The BHL100, BHL80 and BHL80N all share a 64mm spool diameter. The BHL80N features an ultra-narrow 22.8mm spool width, even slimmer than the 24mm BHL50.

By combining this super-narrow frame and spool with the powerful OGM BHL100 gearbox, the BHL80N delivers stable, wobble-free winding with uncompromising power.

High-Performance Drag System

A carbon drag washer provides smooth initial drag engagement and excellent durability, while the aluminium and stainless steel composite drag plate delivers strong friction performance, durability and efficient heat dissipation.

This setup is especially well suited to demanding applications such as tuna jigging, where the drag must withstand long, powerful runs.

High-Strength One-Way Clutch System

This system provides even greater anti-reverse load capacity than the BHL80’s dual 10mm one-way bearing setup.

The one-way clutch bearing is supported by large-diameter radial ball bearings and a waterproof oil seal, delivering enhanced strength, stability and water resistance.

Compact Gearbox Design

By adopting the OGM BHL100 main-shaft bearing design, the gearbox is positioned 3mm closer to the centre of the reel foot compared with the standard model.

This compact layout provides excellent handling, balance and reel control.

Dual-Bearing Pinion Gear Support

The pinion gear is supported by an angular contact ball bearing and a radial ball bearing, minimizing lateral pressure and 3D gear movement.

This dual-bearing design efficiently transfers powerful handle rotation directly to the spool for stable, high-power winding.

Optimized 105mm Handle Length

Rather than following the trend toward longer handles, a 105mm handle length was selected to optimize both jerking stroke and line retrieval per crank, delivering a balanced and efficient feel.
